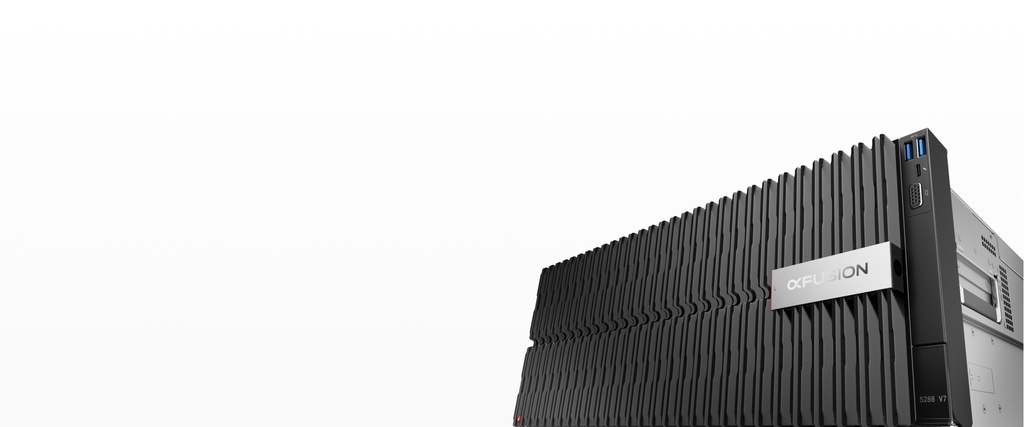

FusionServer 5288 V7

Ultra-large Storage, High Reliability and Security, Efficient Energy Saving, and Intelligent O&M XFUSION INTERNATIONAL PTE. LTD. Front backplane of the 5288 V7 (24 drives) Rear backplane of the 5288 V7 FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Inter- net Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for IT core services, virtualization, distributed storage, big data processing, and other complex workloads. The 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management. - Ultra-large storage: 44 x 3.5" drives and 4 x NVMe U.2 SSDs - Supreme computing power: 4th or 5th Gen Intel® Xeon® Scalable processors with 385 W TDP per processor, - Flexible expansion: up to 12 x standard PCIe slots High Reliability and Security - Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger tempera- ture adaptation, providing 50% better heat dissipation capability than a single heat sink - Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66% - RoT-based secure boot ensures security everywhere - The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average - Industry-leading power supply technology for higher efficiency: Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the - Intelligent service awareness and dynamic load adjustment: The CPU working frequency is dynamically adjusted based on the actual service load - Automatic version push and upgrades can be completed without onsite attendance, improving upgrade - 75% streamlined deployment steps are performed by tools, improving deployment efficiency by 10 times - Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking, 100% accuracy for asset stocktaking Form Factor 4U rack server Processor 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor Memory 32 x DDR5 DIMMs, with up to 5600 MT/s speed Hot-swappable drives configurations: - 4 x 2.5" SAS/SATA drives/SSDs Local Storage - 24 to 44 x 3.5" SAS/SATA drives Flash storage: dual M.2 SSDs RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration Multiple network expansion capabilities; 2 x FlexIO slots dedicated for 2 x OCP 3.0 NICs, which can be configured as required; supporting hot swap and PCIe 5.0 Up to 12 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe slots, GPU Card 8 x single-width GPU cards* Fan Module 6 or 8 x hot-swappable counter-rotating fan modules in N+1 redundancy PSU 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. - The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management - It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection 5°C to 35°C (41°F to 95°F), compliant with ASHRAE Classes A1/A2 Certification CE, NRTL, CCC, FCC, VCCI, and RoHS Installation Suite L-shaped guide rails, adjustable guide rails, and holding rails Chassis with 3.5" drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.) *Configuration details are subject to the technical white paper No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of xFusion International Trademarks and Permissions and other xFusion trademarks are trademarks of xFusion International Pte. Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. In this document, "xFusion" is used to refer to "xFusion International Pte. Ltd." for concise description and easy understanding, which does not mean that "xFusion" may have any other meaning. Any "xFusion" mentioned or describe
