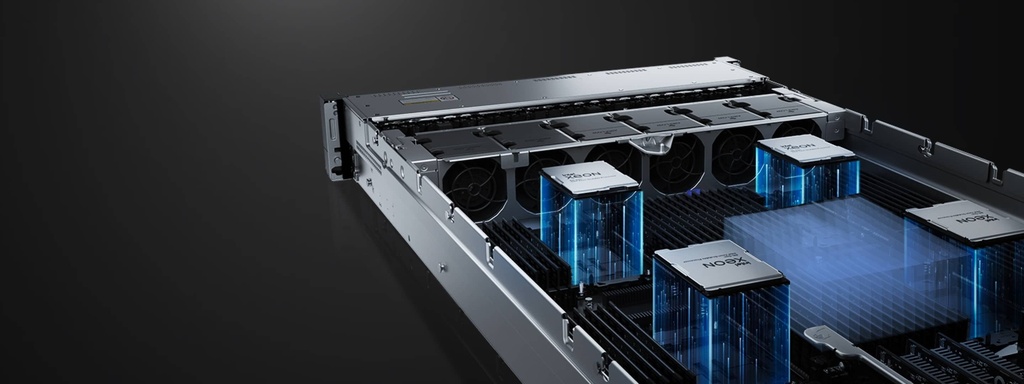

FusionServer 2488H V7

Delivering Excellent Performance and Scalability to Enable Fast Stable Mission-Critical Services XFUSION INTERNATIONAL PTE. LTD. 2488H V7 (8 drives) 2488H V7 (12 drives) 2488H V7 (25 drives) FusionServer 2488H V7 (2488H V7) is a 2U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for various applications, such as databases, virtualiza- tion, and in-memory computing. The 2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density. High Efficiency, Stability, and Scalability - 4 x 4th Gen Intel® Xeon® Scalable processors in 2U space, up to 60 x cores and 120 x threads per processor, with TDP up to 350 W - Up to 64 x DDR5 DIMMs, delivering up to 16 TB total memory capacity (calculated based on a maximum of 256 GB capacity per DDR5 memory module) and featuring high speed and availability - Up to 8 x 2.5" NVMe SSDs, improving storage density and I/O performance - Up to 9 x standard expansion slots - 1 x GE/10GE/25GE/100GE OCP 3.0 NIC that supports orderly hot swap High Reliability and Security - Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger tempera- ture adaptation, providing 50% better heat dissipation capability than a single heat sink - Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66%. - RoT-based secure boot ensures security everywhere - The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average - Industry-leading power supply technology for higher efficiency: Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the - Intelligent service awareness and dynamic load adjustment: The CPU working frequency is dynamically adjusted based on the actual service load - Automatic version push and upgrades can be completed without onsite attendance, improving upgrade - 75% streamlined deployment steps are performed by tools, improving deployment efficiency by 10 times. - Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking, 100% accuracy for asset stocktaking Form Factor 2U rack server Processor 2 or 4 x 4th Gen Intel® Xeon® Scalable processors with TDP up to 350 W per processor Hot-swappable drives configurations: - 8 x front 2.5" SAS/SATA drives Local Storage - 25 x front 2.5" SAS/SATA drives - 4 x front 2.5" SAS/SATA drives and 8 x NVMe SSDs Flash storage:2 x M.2 SSDs, supporting hardware RAID RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration Multiple network expansion capabilities 1 x OCP 3.0 NIC, supporting hot swap PCIe Expansion Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots Fan Module 6 x hot-swappable counter-rotating fans in N+1 redundancy PSU 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. - The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management - It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 Certific0ation 2CE, NRTL, CCC, FCC, VCCI, and RoHS Installation Suite L-shaped guide rails, adjustable guide rails, and holding rails Chassis with 2.5" drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.) No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of xFusion International Trademarks and Permissions and other xFusion trademarks are trademarks of xFusion International Pte. Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. In this document, "xFusion" is used to refer to "xF
