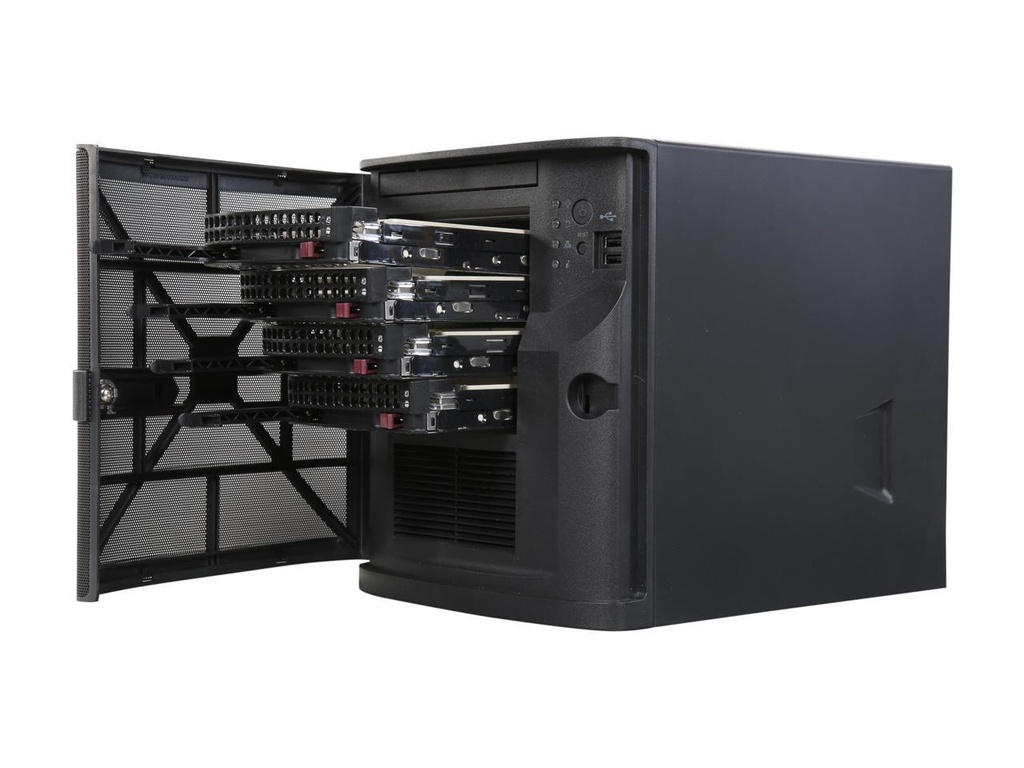

SuperServer 5029S-TN2

Цена по запросу

Отправьте запрос — пришлём актуальную цену и срок поставки в течение рабочего дня.

Запросить цену

Добавить в избранное

Условия и положения
30-дневная гарантия возврата денежных средств
Доставка: 2–3 рабочих дня

Свяжитесь с нами

Новый Срок поставки: 21 дн.

Характеристики

12V: Max: 0.3 Amp Min: 0.05 Amp 3 3V: Max: 10 Amp Min: 0.1 Amp 5V: Max:15 Amp; Min:0.2 Amp 5Vsb: Max: 2 Amp Min: 0.05 Amp Ac Voltage: 100 - 240V, 50 - 60Hz Audio: RealTek ALC 888S High Definition Audio Available Colors: Black Bios Features: Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Bios Type: 128Mb SPI Flash EEPROM with AMI UEFI BIOS Buttons: Power On/Off button System Reset button Certification: Gold Certified Chipset: Intel® Q170 Express Chipset Cpu: Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDP Single Socket H4 (LGA 1151) Depth: 11" (279mm) Dimm Sizes: 16GB, 8GB, 4GB Dom: SATA DOM (Disk on Module) power connector support Environmental Spec: Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) server: Mini Tower Hdd: 4 Hot-swap 3.5" drive bays 2 internal 2.5" drive bays Height: 9.45" (240mm) Lan: 2 RJ45 Gigabit Ethernet LAN ports Leds: Power LED Hard drive activity LED Network activity LEDs System Information LED M 2: M key 2242/2280 PCI-E 3.0 x4 Memory Capacity: 2x 260-pin DDR4 SODIMM slots Up to 32GB DDR4 Non-ECC UDIMM Memory Voltage: 1.2 V Model: CSE-721TQ-350B Network Controllers: Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Note: BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors Pci E: 1 PCI-E 3.0 x16 slot 1 Mini-PCIe with mSATA support Peripheral: 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" drive bay) Rohs: RoHS Compliant Sata: Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10 Serial Ata: 5 SATA 3.0 ports (6Gbps) including 1 mSATA Raid 0, 1, 5, 10 Serial Port Header: 2 COM ports (2 rear) Software: SuperDoctor® 5 Watch Dog AMT NMI vPro Sys 5029S Tn2: SuperServer 5029S-TN2 ( Black ) Tpm: 1 TPM 20-pin Header Type: 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs Usb: 4 USB 3.0 ports (rear) 2 USB 2.0 ports (front) 1 USB 2.0 Type A Video Display: 1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays Weight: Gross Weight: 15 lbs (6.8 kg) Width: 8.27" (210mm)

12V	Max: 0.3 Amp Min: 0.05 Amp
3 3V	Max: 10 Amp Min: 0.1 Amp
5V	Max:15 Amp; Min:0.2 Amp
5Vsb	Max: 2 Amp Min: 0.05 Amp
Ac Voltage	100 - 240V, 50 - 60Hz
Audio	RealTek ALC 888S High Definition Audio
Available Colors	Black
Bios Features	Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Bios Type	128Mb SPI Flash EEPROM with AMI UEFI BIOS
Buttons	Power On/Off button System Reset button
Certification	Gold Certified
Chipset	Intel® Q170 Express Chipset
Cpu	Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDP Single Socket H4 (LGA 1151)
Depth	11" (279mm)
Dimm Sizes	16GB, 8GB, 4GB
Dom	SATA DOM (Disk on Module) power connector support
Environmental Spec	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Форм-фактор	Mini Tower
Hdd	4 Hot-swap 3.5" drive bays 2 internal 2.5" drive bays
Height	9.45" (240mm)
Lan	2 RJ45 Gigabit Ethernet LAN ports
Leds	Power LED Hard drive activity LED Network activity LEDs System Information LED
M 2	M key 2242/2280 PCI-E 3.0 x4
Memory Capacity	2x 260-pin DDR4 SODIMM slots Up to 32GB DDR4 Non-ECC UDIMM
Memory Voltage	1.2 V
Model	CSE-721TQ-350B
Network Controllers	Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors
Pci E	1 PCI-E 3.0 x16 slot 1 Mini-PCIe with mSATA support
Peripheral	1 slim DVD-ROM drive bay (shared with 1 internal 2.5" drive bay)
Rohs	RoHS Compliant
Sata	Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
Serial Ata	5 SATA 3.0 ports (6Gbps) including 1 mSATA Raid 0, 1, 5, 10
Serial Port Header	2 COM ports (2 rear)
Software	SuperDoctor® 5 Watch Dog AMT NMI vPro
Sys 5029S Tn2	SuperServer 5029S-TN2 ( Black )
Tpm	1 TPM 20-pin Header
Type	2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs
Usb	4 USB 3.0 ports (rear) 2 USB 2.0 ports (front) 1 USB 2.0 Type A
Video Display	1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays
Weight	Gross Weight: 15 lbs (6.8 kg)
Width	8.27" (210mm)
